HumiSense® Transmitter Line

Relative Humidity Transmitters
(Analog and Digital)

Features

  • Rugged epoxy encapsulation
  • Open PC Board
  • Voltage, current, or digital output
  • Optional dust filter
  • Individually point calibrated
  • Combination humidity, temperature transmitters available
  • Threaded or wall box mount
  • High quality at low cost
HumiSense Transmitter by Thermalogic

Specifications and Options

Indication icon for Thermalogic

General
Options

  • Power: 4 – 20 mA loop (2 wire)
  • 7 – 24 VDC (3 wire)
  • Temperature coefficient 0.1% RH/C
  • Linearity +/- 2% RH
  • Operating range (non-condensing) 5% – 98%
  • Time constant (moving air) 20 seconds – 2 minutes
  • Ambient operating: 0/50 C to -55/105C
  • Panel or sub-panel mount
Output options icon for Thermalogic Product

Output
Options

  • 4 -20 ma
  • 0 – 1 volts
  • 0 – 5 volts
  • 0 – 10 volts
  • Digital RS-232 / RS-485
  • Digital
  • RS 232/485
  • USB
  • Ethernet
  • WiFi
  • Bluetooth
  • Special ranges
  • Custom calibration available
  • Custom Protocols
  • Protocol matching
Indication icon for Thermalogic

Package
Details

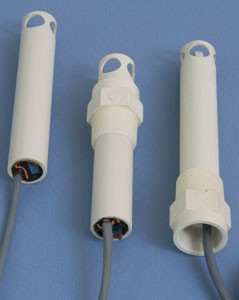

  • 3/4″ DIA x 6″ L PVC Tube
  • 3/8″ DIA x 5.5″ L PVC Tube
  • Custom packages available to fit your application
