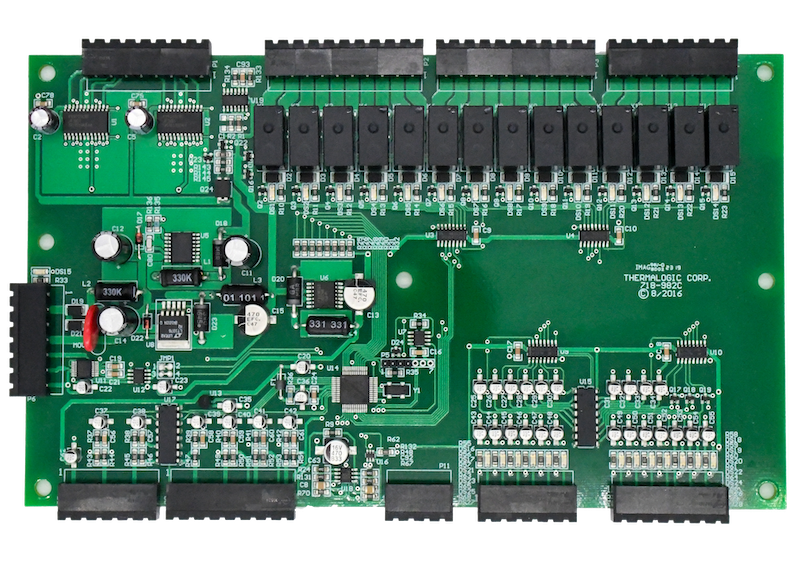

Master Series® Control Line
Multi-function Temperature and Process Controls for Demanding Applications
Elaborate multi-zone microprocessor based controls for demanding applications where many parameters may be controlled simultaneously in a single package.
Features
- Multiple display options
- Large range of I/O options
- Single or multiple zones
- Analog or Digital I/O available
- Custom panel overlay
- Computer communications
- Auxiliary alarms and special functions
- Time functions available
- Custom programming available
Specifications and Options
General
Options
- Open circuit board or rugged epoxy encapsulation
- Single or multiple zone I/O
- Large range of I/O options
- Panel or sub-panel Mount
- Analog and/or digital I/O
- EMI/RFI filtering
- Special functions such as time or logic
- Convenient mounting
Input
Options
- Single or multiple sensors
- Thermistor
- RTD (2,3 or 4 Wire)
- Thermocouple
- Digital or logic
- Voltage
- Current
- Resistance
- Dry Contact via switch or relay
- Frequency
- Solid State
- Humidity
- Infrared
- pH or ORP electrodes
Output
Options
- Single or multiple outputs
- ON/OFF
- PID
- Logic drive
- SSR drive
- Relay
- Analog
- Voltage
- Current
- Triac
- Isolated outputs
Communication
Details
- RS 232, 422 or 485 (can be isolated)
- Ethernet
- Wifi
- Bluetooth
- USB
- Modbus
- Custom Protocols
- Protocol matching
Display
Options
- .56″ LED digits
- 32 character 2 line LCD
- 32 character 2 line VFD
- LCD Touch Screen
- Custom or 1/8 DIN enclosure mounting
- Remote Display Option
Package
Details
- Custom sizes available
- Enclosure and shielding options
- Multiple Connector and Terminal Options (Contact Factory)
General
Specifications
- 120/208/240 VAC 50/60 Hz
- 12/24/28 VAC 50/60 Hz
- 12 to 72 VDC or special
- 85 to 265 VAC Universal
- Ambient operating: 0/50 C to -55/105C
- Compliance assistance for UL, TUV, CSA, AGA certification
- Panel or sub-panel mount
