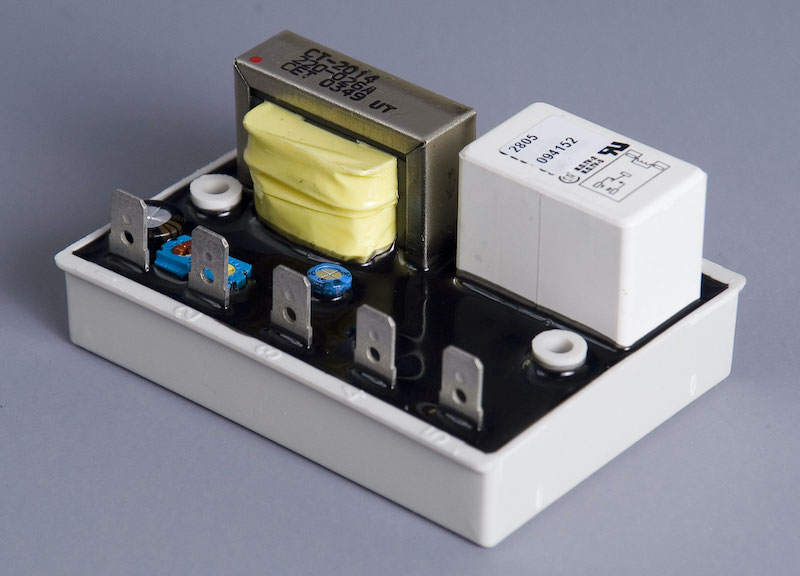

Circuitboard TempGuard® Analog Control Line by Thermalogic

TempGuard® Analog Control Line

Analog Based Non-Indicating Temperature and Process Controls

An extensive line of non-indicating, simple analog controls (from single zone to multiple zone controls)

Features

  • Open PC Board or Rugged Epoxy Encapsulation
  • Large range of I/O options
  • Single or multiple inputs and setpoints
  • Relay, voltage or current outputs
  • Custom ranges and dials
  • Analog and/or digital I/O
  • Panel or sub-panel mount
  • Special functions such as time or logic
  • Convenient mounting
  • Exact fit replacement for various industry standard controls
  • Wide ambient range available
Circuitboard TempGuard® Analog Control Line by Thermalogic

Specifications and Options

Indication icon for Thermalogic

General
Options

  • Remote setpoint adjustment
  • On-board setpoint adjustment
  • Fixed setpoint
  • Panel or sub-panel mount
Product icon input options

Input
Options

  • Single or multiple input
  • Thermistor
  • RTD (2,3 or 4 Wire)
  • Thermocouple
  • Voltage
  • Current
  • Resistance
  • Frequency
  • Dry Contact via switch or relay
  • Diode
  • Humidity
  • Infared
  • pH and ORP electrodes
Output options icon for Thermalogic Product

Output
Options

  • SSR voltage drive
  • Relay
  • Triac
  • Logic
  • Current
Indication icon for Thermalogic

General
Specifications

  • 120/208/240 VAC 50/60 Hz
  • 12/24/28 VAC 50/60 Hz
  • 12 to 72 VDC or special
  • Ambient operating: 0/50 C to -55/105C
  • Built to UL, TUV, CSA, AGA
  • Panel or sub-panel mount
Package Details Product icon for Thermalogic

Package
Details

  • Standard size 3.2″ x 2.3″ x 1.5″
  • Standard size 3.2″ x 2.6″ x 1.5″
  • Standard size 3.5″ x 3.5″ x 2″
  • Special sizes available
  • Open PC Board or Rugged Epoxy Encapsulation
